1 Set DIY LED Electronic Kit CD4017+NE555 Flash Light for Create Dynamic Billboards Or Decorative Ambient Lighting
US$3.50
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by noticiasenhouston.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$3.50
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by noticiasenhouston.com
Free 30-day returns Details
Product details
| Management number | 237625483 | Release Date | 2026/07/10 | List Price | US$3.50 | Model Number | 237625483 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Power supply voltage: DC 12V, control panel: 60.7x37mm, LED light panel: 35x26mm.
- This kit consists of a control board A and three light boards Blight board colors are red, blue, white. After power on, the redand blue light boards flash twice each successively, and then thewhite light board flashes once, so alternating cycle. Mastery of the principles of this kit, you can make a running billboard or decorative ambient light.

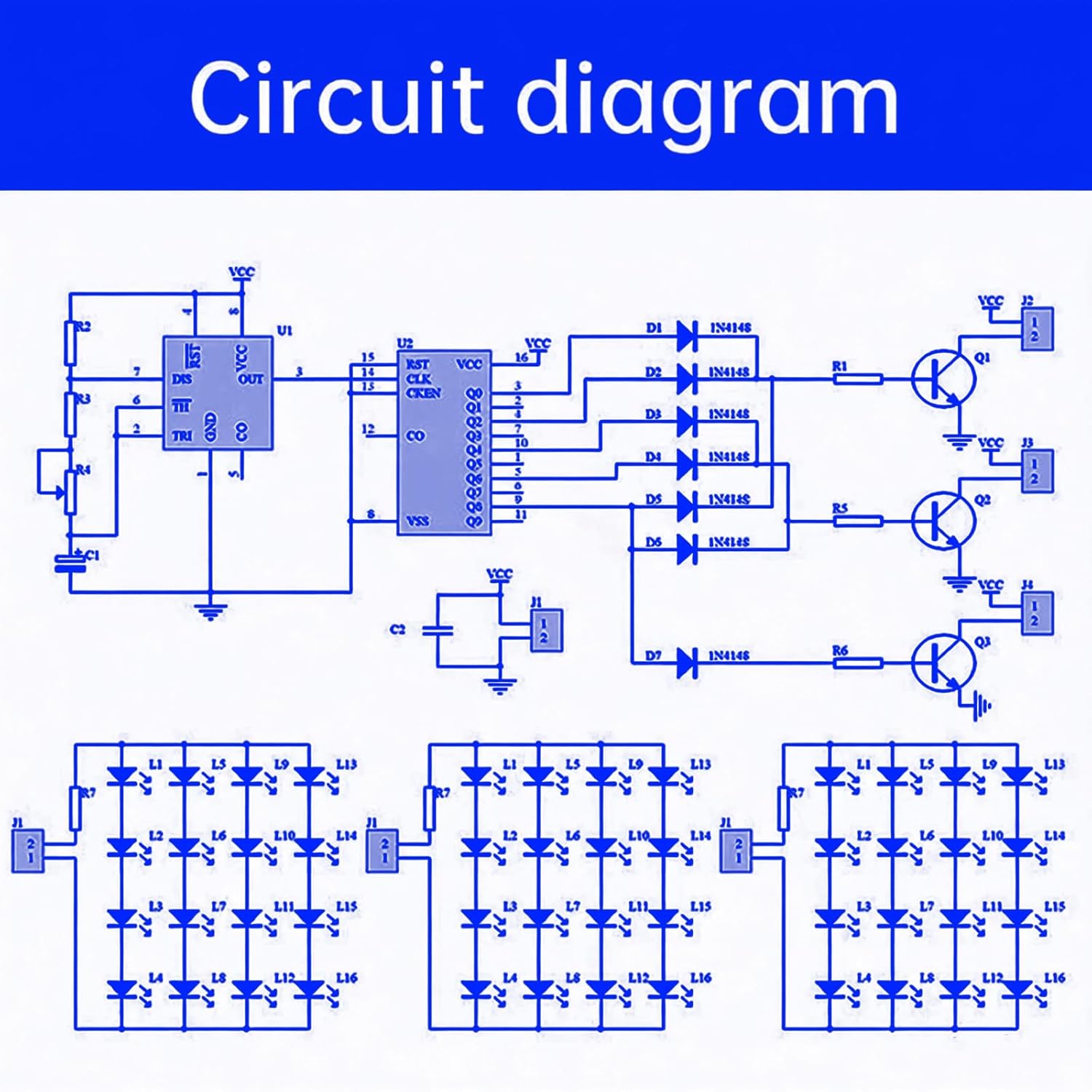

- Circuit by the NE555 circuit, CD4017 circuit and LED light circuit consists of NE555 part of the circuit to generate a square wave signal pulse from the 555 chip 3-pinoutput, the output frequency of the pulse by R2, R3, R4 and C1 to determine the output of the pulse to the pulse input part of the CD4017 circuit.
- each produce a pulse, the output of the CD4017 will be in order from the Q0 -Q7 Move the output high level to drive the transistor conduction, the corresponding light board will be on.
- Product include a total of 1Set DIY LED Electronic Kit, which can completely meet your daily use needs and replacement.
| ASIN | B0GGTXZCH8 |
|---|---|
| Item Weight | 1.41 ounces |
| Manufacturer | LT Easiyl |
| Item model number | BA400_M |
| Package Dimensions | 5.2 x 4.45 x 0.75 inches |
