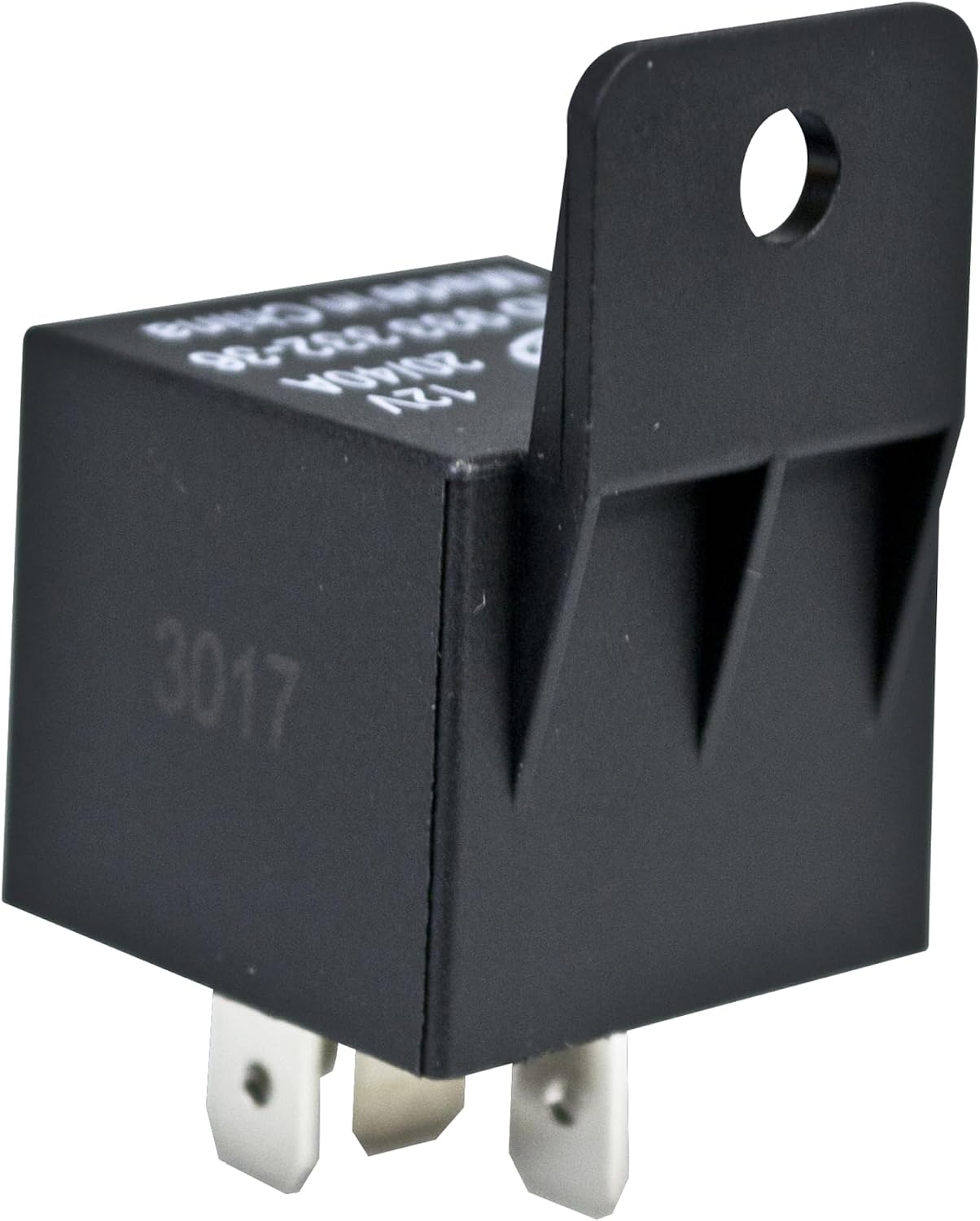

HELLA 933332361 12V, 5 Pin, Mini ISO Relay with Bracket
Product details
| Management number | 234288702 | Release Date | 2026/06/27 | List Price | US$4.49 | Model Number | 234288702 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The HELLA Multi-Purpose Relay 933332361 is engineered to manage various electrical loads in automotive systems. This 12V change-over relay supports a rated switching current from 6A to 40A, ensuring adaptability across different applications. Built for durability, it withstands up to 100,000 switching operations. With a coil resistance of 85 Ohm and an integrated mounting bracket, it offers reliable performance and ease of installation.
- Versatile compatibility: Works with ohmic, inductive, and capacitive loads for wide-ranging applications
- Long-term reliability: Rated for up to 100,000 switching operations for dependable, consistent use
- Versatile compatibility: Works with ohmic, inductive, and capacitive loads for wide-ranging applications
- Secure Installation: Integrated mounting bracket enables fast, stable setup in vehicle systems
- Stable Coil Performance: 85 Ohm coil resistance promotes reliable operation in demanding conditions
| ASIN | B07G19C3W4 |
|---|---|
| Model | 933332361 |
| Wattage | 1.57 watts |
| Brand Name | Hella |
| Unit Count | 1.0 Count |
| Item Weight | 0.03 Kilograms |
| Part Number | 933332361 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | HELLA |
| Mounting Type | Bracket Mount |
| Connector Type | Plug-In |
| Current Rating | 40 Amps |
| Item Type Name | 5 Pin |
| Operation Mode | Automatic |
| Coil Resistance | 85 Ohms |
| Contact Material | Silver |
| Specification Met | Iso |
| Included Components | Mini Relay with Bracket |
| Warranty Description | 1 Year Limited |
| Contact Current Rating | 40 Amps |
| Maximum Switching Current | 40 Amps |
| Minimum Switching Voltage | 12 Volts |
